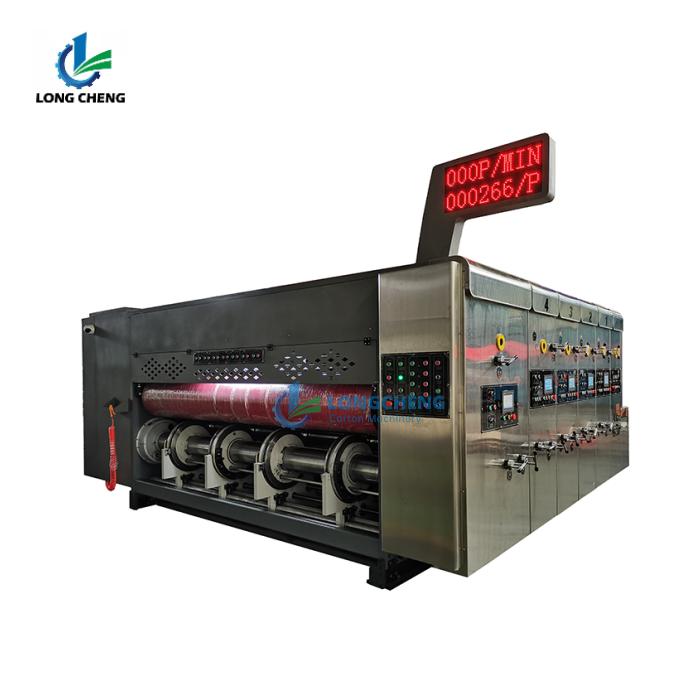

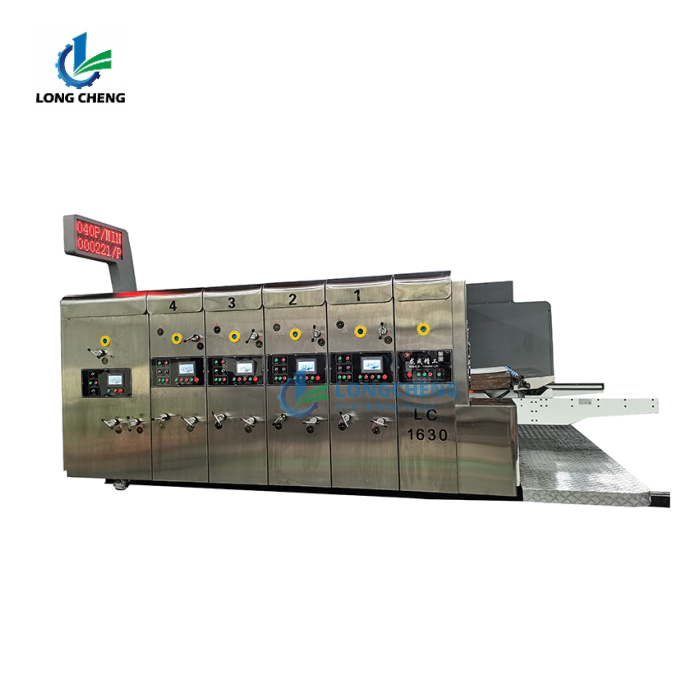

Medium speed carton printing slotting die-cutting machine

Medium speed carton printing slotting die-cutting machine

Functional properties of each unit and introduction

The machine adopts advanced programmable logic controller (PLC) computer control system and inverter electrical control system as the core, easily realizeorder management,rapid order change and production data storage, set parameters display data and remote maintenance, quicky troubleshooting equipmen fauts.Each unit electric open and close,pneumati lock.Drive gear material adopt 20CrMnTi igh quality stel processed with high precision grinding.Feding、pressing andll aps adopted inteligence automatic electric lock structure.Whole machine adopts key free connection,reduce connection gap and ensure printing precision

PAPAER FEED UNIT：

1.Adopt double vacuum table wheel type,servo pressure-free leadedge feeding,avoid damage thestrength of flute,high feeding precision,ensure curved paper can be feed to the required position.
2.Vacuum adsorption blower assist paper feeding,volume adjustable,suitable for different size ofpaperboard.
3.Left and right baffle is adjusted simultaneously with the size of carton,also can be adjusted separatelyfrom HMI.
4.Rear baffle electric adjusting,front baffle manually synchronously adjusting,fast and convenient.
5.Feeding unit adopt multi lines of brush roll and top vacuum adsorption dust remove blower,used toremove dust from paper surface,improved printing quality.

PRINTING UNIT：

1.Printing roll adopt high quality steel,professional made processed with dynamic balance correction,fine grinding molding.
2.The surface is engraved with longitude and latitude lines,convenience install the printing plate.
3.Equipped with hanging plate groove,10mm plate lock with ratchet fixed coil shaft,convenience for hanging the printing plate.
4.Intelligence foot pedal switch control positive and negative rotation of printing roll,easy to install and remove the printing plate.
5.Printing roll lft and right movement electric adjusting,hard chrome processed with dynamic balance corection,electric adjusting gap.
6.Ruber rllinking distibuton system:Suface coated with wear-resistant ruber,medium higher height after special rinding.electric gap adjusting(Closed type docto bladeink distribution system optional)
7.Anilox rlIEquiped with individual motor drive idling evice,ensure ink wil not dry when machine stop working(Ceramic rolloptional).Paper transfer whel adopted fastadjusting design and equipped with ruler bars instead of tape measurement(Servo adjusting paper transfer wheels optional).
8.High pressure auto cleaning device,making the process of water reycling or cleaning more convenien,equipped wit fo type ink sotage warning system,avoid paperwaste.

DIE CUTTER UNIT：

1.Die cutting roll phase is servo motor control,adopt planetary gear adjusting device,360°adjustable.
2.Electric adjusting die cutting clearance,ranging 16mm
3.Rubber anvil roll adopts high quality steel precised manufacturing,after dynamic balancecorrection,surface grinding and hard chrome plating.Axial direction adopt automatic swingdevice,distance:±20mm.
4.Rubber anvil roll adopts differential gear compensation device,the linear speed difference will beautomatically compensated after rubber anvil being repaired,ensured die cutting precision.
5.Equipped with servo CNC slotting knives attachment(input length,width and height of box in HMI toadjusting knives,multi box types are supported)
6.1:1 large diameter 8 axis creasing making better box forming quality.Knife and creasing wheels can beseparated ,easy for install abnormal mould,help to creasing and paper transferring.

Product parameter

No.	Model	1426	1224
1	Max. Machine Speed(Pcs/min )	200/180	240/200
2	Max.feeding size (LxW) (mm)	2600×1400	2400×1200
3	Skip feeding size (Lx W) (mm)	2600×1600	2400×1200
4	Min.paper size (mm)	600×350	600×320
5	Max. Printing Area (L x W) (mm)	2600×1400	2400×1200
6	Printing plate thickness (mm)	7.2	7.2
7	Cardboard thickness (mm)	2.5-10	2.5-10
8	Max.die-cutting size (mm)	2600×1300	2400×1100

Our equipment is suitable for various types of corrugated boxes, all equipment can be customized according to customer needs. We have a professional team to recommend suitable and cost-effective equipment to meet your production needs and save your budget. One model for many needs.
