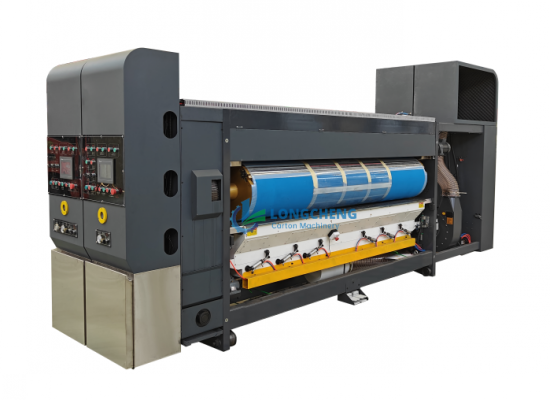

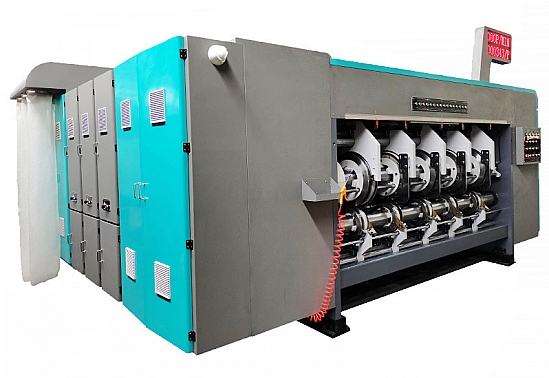

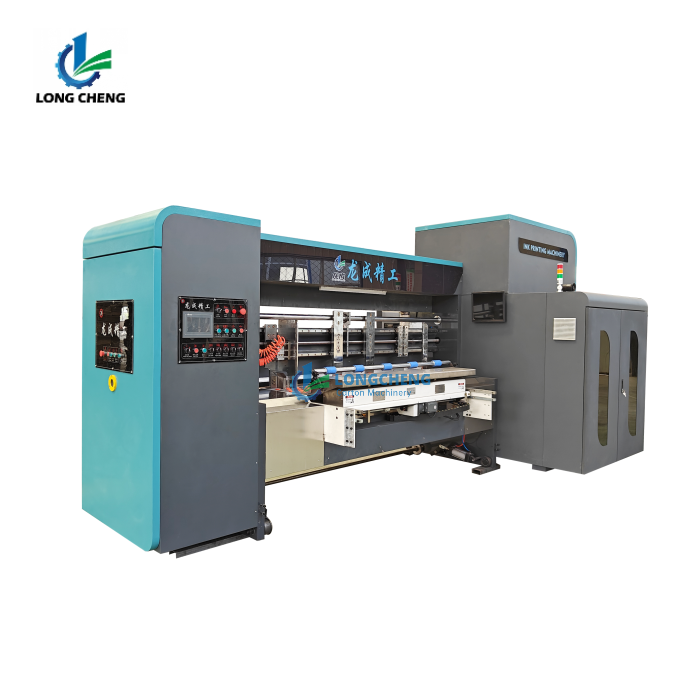

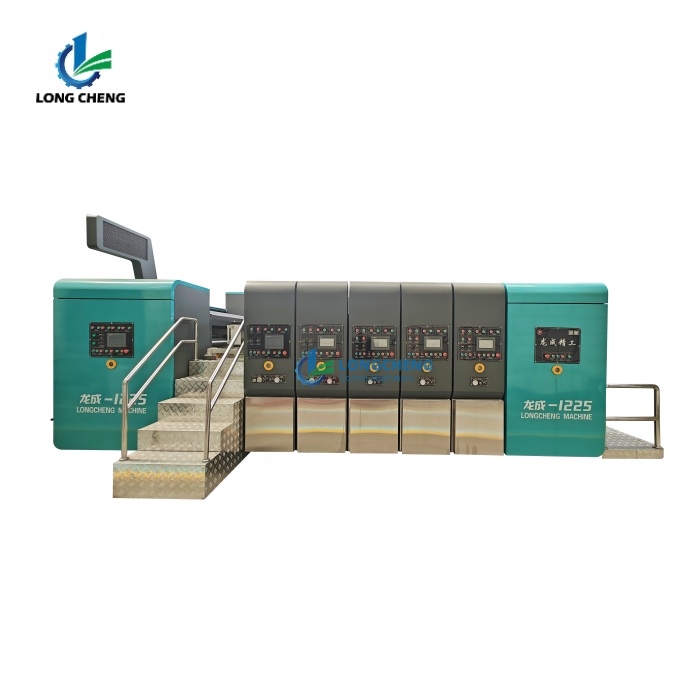

Carton printing slotting die cutting machine

Carton printing slotting die cutting machine

Product details

1.The whole machine is strict,in accordance with the EU CE safety standard design,with standardization, universality, humanization.According tothe man-machine integrated manufacturing concept,it can directly set, correct, execute, replace, memory and other functions on the touch screen,which is a product with ultra-high cost performance.

2.Touch screen human-machine interface dialogue and electric control dual system operation function, with inteligent zero, memory automaticreset, storage orders and other functions; Remote tracking service system is optional.

3.Man-machine interface display,PLC controller,inverter, servo drive, are selected from Germany Siemens, Germany Bosch Rexroth, JapanYaskawa and other world famous brands.

4.The main transmission gear is made of high quality lly stel (20CrMnT). After program control automatic carburizing, quenching and grindingprocessing, the tooth surface hardness is guaranteed to be uniform and consistent, and the tooth surface hardness is HRC62-65 with six standardaccuracy.

5.Al roler and shaft holes are cut to ensure uniform wall hickness and stable and reliable operation at high speed; During the machining process,the stress changes are eliminated after several tempering treatments, and the surface is protected by coating after grinding.

6.The pressure of the whole machine can be adjusted by one key, which can automatically read the thickness of the paper and confirm theadjustment, and also can be input adjustment.

7.Servo phase adjustment with a minimum fine tuning of 0.02 mm.

Feeding function：

1.Double bellows private suit non-pressure paper feeding mechanism,with fast response speed, high positioning accuracy, good system stability,efficient to ensure the strength of paper and other effects, to ensure the long-term stability of the machine.
2.Using double bellows to feed paper can greatly protect the paper when entering the machine, the damage caused by the old traditional paperfeeding to the paper corrugation, so that the degree of the original paper is preserved.
3.Vacum auxiliary air volume frequency conversion adjustment; Set up continuous transmission and separate sheet feed function; The upperdust suction and dust removal mechanism can be set up and the air volume can be adjusted automatically.
4.The unique quick-change all-wheel structure makes the round surface of the paper feed wheel wear uniform and ensure the long-termconsistency of the paper feed position; When replacing the rubber wheel,it isonly necessary to remove the equipment directly, which is convenientand fast to reduce the auxiliary time, so that the machine can be used more safely and economically.
5.The order quantity can be set,and the paper feeding will be automaticallystopped after completion: the working position of the left and rightbaffle and the rear baffle can be adjusted electrically, and the working frequency of the automatic side lignment paper can be set arbitrarily; t canrealize linkage work with automatic feeder.

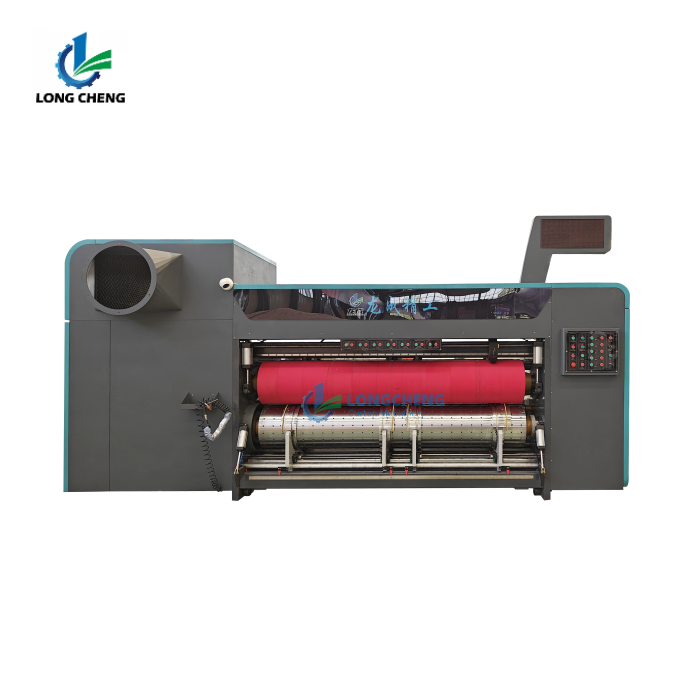

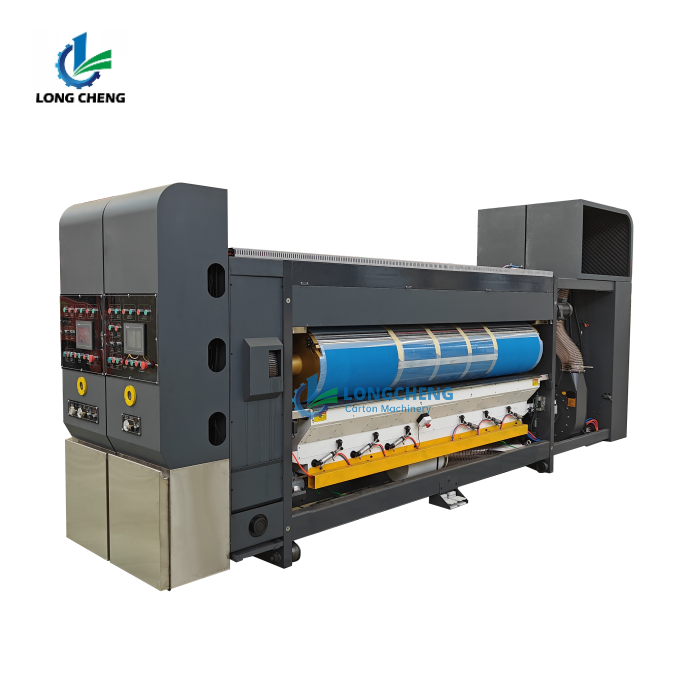

Printing function：

1.Bellows and rollers(optional)
2.Touch screen, electric button dual system servo control printing phase, axial position;the plate has the automatic reset function of erasing memory.
3.The operation department sets the start and stop function of ink roller and ink pump;set the emergency stop protection switch for each color group.
4.The feed part of the mesh rolle is linked to the lifting work, and the gap between the printing plate is electrclyadjusted when inking; Plate rollwith the paper suction bellows pressure electric adjustment, and can adjust the air volume setting.
5.Roller ink leveling system adopts a new process to ensure field printing while compatible with more than 60 lines of high dot printing
6.Optional sealing chamber double scraper ink leveling mechanism, the use of integral ink leveling anti-seepage device, to avoid ink overflowduring work:its special scraper Angle makes the ink transfer more ideal, can easily achieve 100-line dot printing,and can extend the service life ofthe scraper and mesh rolling.
7.The printing phase is attached with an electromagnetic clutch braking mechanism, which can automatically lock the gear position when themachine is separated to prevent the zero position of the printing plate from being lost.
8.The printing phase is adjusted by private suit, with high accuracy and fast speed, and the minimum fine adjustment can be achieved by 0.02 mm.
9.Plate section is equipped with electric foot switch, which can be quickly hung and adjusted, convenient for plate change and scrubbing.

Sloting function：

1.Man-machine interface and servo automatic adjustment dual system operation, can complete the slotted box height, phase, axial movementadjustment.
2.Multi-servo computer adjustment, can make pre-pressure,press line, cutter synchronized adjustment, greatly shorten the adjustment time
3.The high quality polyurethane is wrapped in the wire roller to ensure that the hardness of the cardboard is not damaged.
4.Automatic knife setting function, one-time carton forming, zero scrap.
5.High quality aly steel is selected for the wire wheel shaft and the sloted whel shaft. After surface grinding,it is plated with hard markingtreatment;it is corrected on two dynamic balancing equipment respectively to ensure that the best balance point is found.
6.Selected high quality alloy steel slotting knife, tooth blade width of 7mm.

Die-cutting function：

1.Free knife ring computer adjustment and manual adjustment(optional)
2.Touch screen and electric button double system control work,can adjust the phase and axis of the die cuting par,the rear side is installed withprinting, slotting adjustment buttons, and set the host on, off and acceleration and deceleration functions.
3.Using a unique built-indifferential compensation device, when the outer warp of the rubber pad changes,it can automaticlycompensate theline speed, ensure the consistency of the production workpiece specifications, and increase the service life of the rubber pad.
4.When the die cutting part starts to work, the mold roller automatically ifs to the working position, and the rubber cushion roller enters theautomatic displacement working state, Youli ruber cushion roler with the same mold rollerdiferential speed design; The automatic cutting andrepairing mechanism of rubber pad is equipped, which can repair Youli rubber many times.
5.The stencil roler and rubber cushion roller are made of high quality stel. After normalizing treatment, they are cut inside and outside. Afterfinishing,they are plated with hard chrome, and then they are adjusted for balance respectively.
6.According to the installation of waste removal conveyor with automatic deviation correction function against deviation.
7.Can choose servo control line speed compensation mechanism,can make higher precision die-cut carton.

Product parameter

No.	Model	1426	1224
1	Max. Machine Speed(Pcs/min )	200/180	240/200
2	Max.feeding size (LxW) (mm)	2600×1400	2400×1200
3	Skip feeding size (Lx W) (mm)	2600×1600	2400×1200
4	Min.paper size (mm)	600×350	600×320
5	Max. Printing Area (L x W) (mm)	2600×1400	2400×1200
6	Printing plate thickness (mm)	7.2	7.2
7	Cardboard thickness (mm)	2.5-10	2.5-10
8	Max.die-cutting size (mm)	2600×1300	2400×1100

Our equipment is suitable for various types of corrugated boxes, all equipment can be customized according to customer needs. We have a professional team to recommend suitable and cost-effective equipment to meet your production needs and save your budget. One model for many needs.

Company profile

LONGCHENG CARTON MACHINETRY is located in Dongguang County, Hebei Province, we are an intelligent supplier with professional of carton packing research development and production, we are a modern enterprise with integrating design,R&D, production, sales and after-sales, Our production have a reputation for timely delivery ,good service to win the user’s highpraise.ln the future, we will take the market-oriented, science and technology development as main power, sincerely cooperate with the users, constantly updated products, continuously improve the quality of product, perfect after-sales service,sincerelyreturn society.Our company’s products are designed and manufactured accordingto European standards. The equipment is exported to more than 60 countries, and more than 20 provinces in China.Many places havesales office and after-sales outlets to provide customers with guarantee services.

Professional team

Our Commitment to Providing Our Customers with Best Services.

★ Our sales team has professional product knowledge and rich application experience. They are optimistic and enthusiastic and provide you with the most thoughtful service.
★ Whenever you have questions about our products after receiving the goods, our after-sales services team will answer your questions patiently and solve your problem promptly.

Company exhibition

Longcheng Machinery focuses on developing the most cost-effective carton packaging machines, in order to meet customers increasing demands. We provides packaging solutions throughout the world. More than 150 machines have been installed in 50+ countries all over the world, like Japan, America, UK, India, and so on. Both machine performance and customer service have received tons of excellent reviews from our partners and customers.
