High speed 3 5 7 ply corrugated cardboard production line

High speed 3 5 7 ply corrugated cardboard production line

Product details

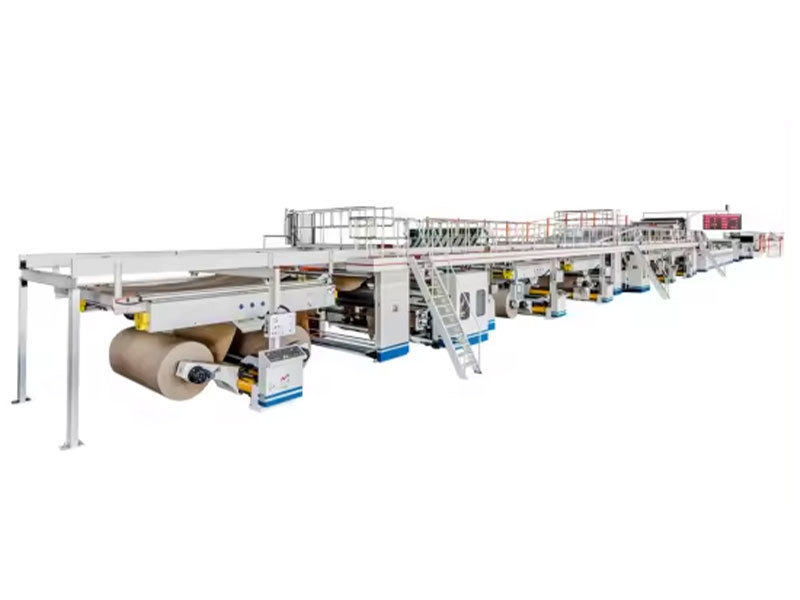

The line is composed of cover type adsorption corrugated machine, paper bearing frame, glue machine, double-sided machine, paper cutter, preheating roller, double-layer bridge, glue machine and so on. It is our company in the absorption of foreign advanced technology, widely listen to the opinions of users on the basis of the company’s more than 20 years of experience in the production of carton machinery and the development of new products. Its characteristics are high degree of automation, convenient operation.

Product parameter

No.	Technology project	Five Layers	Three Layers
1	Maximum production width	1800 mm	1800mm
2	Design speed	150 m/min	120m/min
3	Economic speed	100-120 m/min	60-100 m/min
4	Commissioning temperature	≥175 ℃	≥172 ℃
5	Base paper grades	≥level B	≥level B
6	Base paper moisture content	10%±2%	11%±2%
7	Tissue	100~250g/m2	100~180g/m2
8	The core of paper	100~250g/m2	80~160g/m2
9	Tile paper	100- 200g/m2	90~160g/m2
10	Corrugated type combination	A, B, C, E  (customer can customize)	A, B, C, E (customer can customize)
11	Maximum steam pressure	16Kg/cm²	16kg/cm²
12	Common steam pressure	10-12Kg/cm²	8-12kg/cm²
13	The total amount of steam	2500-3000KG/h	1000-1500KG/h
14	Compressed air pressure  is commonly used	0.8-1.1Mpa（4-8kg/cm² ）	5-7kg/cm²
15	Maximum  compressed air pressure	1.2Mpa（9kg/cm² ）	8kg/cm²
16	Overall  compressed air consumption	About after 1 m³/min	1 m³/min
17	The power supply	380V, 50HZ, three-phase four-wire system  (foreign voltage can be customized)	380V 50Hz    Three-phase four-wire system  (foreign voltage can be customized)
18	Total installed power  of equipment	About 220 KW	About 120KW
19	Actual electricity  consumption	About 150KW(full speed)	About 80KW(full speed)
20	Equipment cover area	About 70m x 10m x 4.5m  (the specific length is subject  to the foundation drawing)	About 45m×8m×4.5m (The specific length shall be subject to the foundation diagram)
21	Forecast production	Output of about  6-70,000 square meters in 8 hours
22	Paper outlet direction  of the device	According to the user workshop  to determine the left or right drive	According to the user workshop to determine the left or right drive
23	Suitability of equipment	Available A, B, C  grade domestic base paper  or imported base paper	available A, B, C grade domestic base paper or imported base paper.
If there is any other technical correction, no further notice will be given

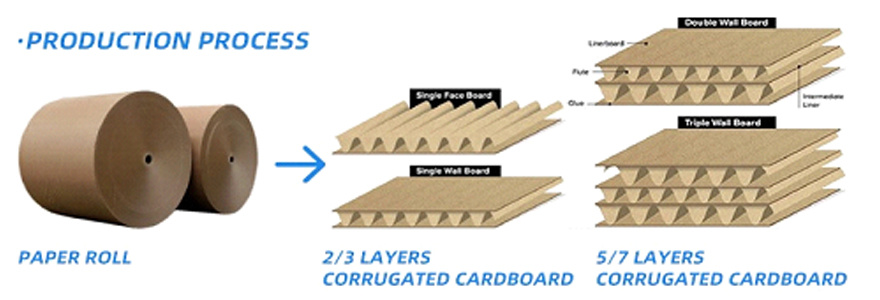

Production process

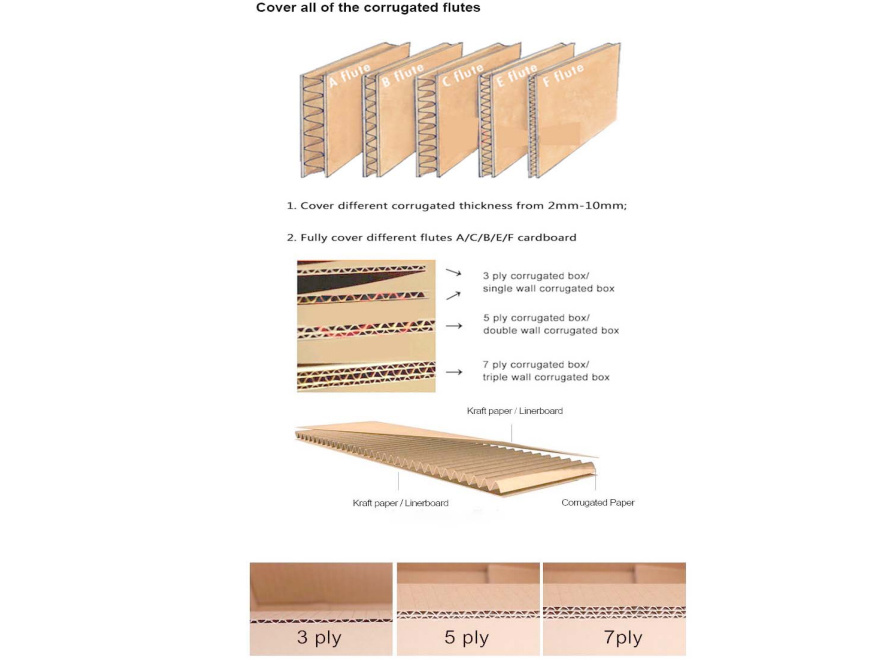

Sample display

Our equipment is suitable for various types of corrugated boxes, all equipment can be customized according to customer needs. We have a professional team to recommend suitable and cost-effective equipment to meet your production needs and save your budget. One model for many needs.
