Automatic carton printing machine

Automatic carton printing machine

Product details

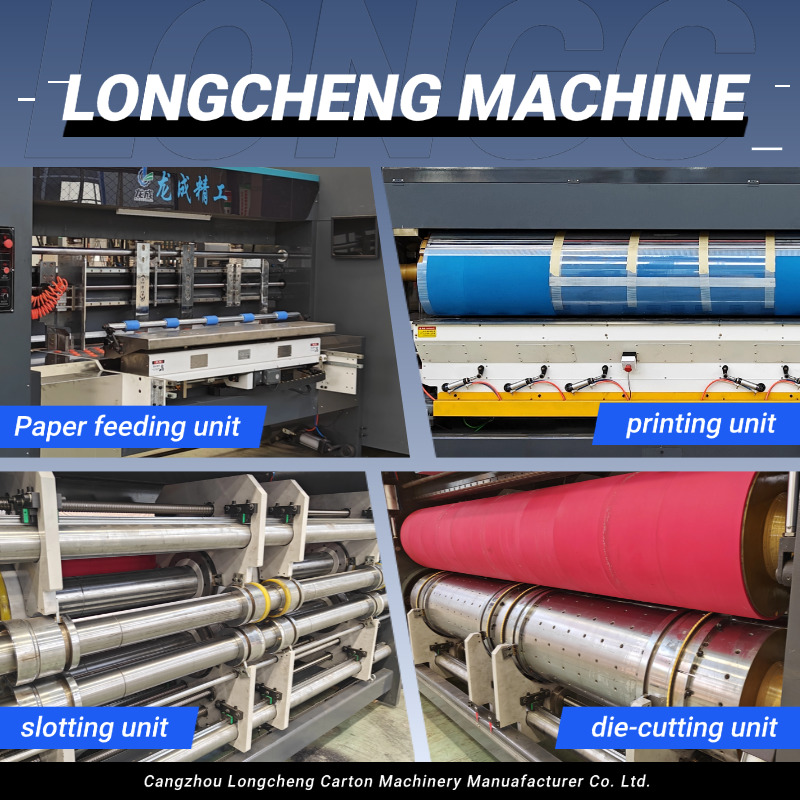

1.This machine is composed of paper feeding, printing, die-cutting, stacking and otherparts, and can complete the printing, die-cutting and other processes of three-layerand five-layer corrugated cardboard at one time.

2.The whole process of vacuum adsorption transmission adopts 7.5KW high-efficiencyand energy-saving frequency conversion motor, and all-ceramic adsorption paperfeeding rollers, which make paper feeding accurate, smooth and fast.

3.The ink-distributing transmission system is reformed with determination. It adoptsimported motor with cross-link shaft and gear transmission to reduce noise, enhancetransmission tightness, improve machine running speed and stability, and improveprinting accuracy and overprinting accuracy.

4.The ink is evenly applied, the ink volume is controllable, and the ink overflow isprevented, ensuring that the outside of the ink path is clean and hygienic; it is alsoequipped with an ink shortage alarm device to prevent damage to the rubber roller dueto lack of ink, and can also effectively reduce waste productivity.

5.Each unit is equipped with a contact-flow oil level balance device to prevent the lackor overflow of lubricating oil for individual units. The machine is equipped with Koreanmulti-tone speakers, which can make different sounds for adjusting the phase, traverse,gap, zeroing, splitting, warning, etc.to remind the operator that the operation can besafely turned on after the completion of the operation.

6.The paper-passing gap of the whole machine is intelligently adjusted, just put thecardboard to be printed on the cardboard test and click to confirm. No need to adjustfrequently, simple and fast. And can realize the incremental function, each unit and themaster console have individual gap adjustment. (Patented product)

7.Servo leading edge feeding system, high-precision feeding, and intelligently controllablefeeding time. It can transport rigid kraft cardboard and three-, five-and seven-layerboards. Vacuum suction to feed paper, overcome the different degrees of cardboardbending, to ensure smooth paper feeding.

8.Squeegee chamber (optional with ceramic anilox roller)

9.The independent servo-driven die-cutting unit comprehensively improves the printingand die-cutting accuracy. One-key computer adjustment of pre-pressing, solid-pressing and slotting knife rings can improve efficiency and reduce order change time.It is also equipped with a radial servo speed compensation device. The wear of therubber roller can be evenly distributed and the service life of the rubber roller can begreatly improved.

Product parameter

No.	Model	1426	1224
1	Max. Machine Speed(Pcs/min )	200/180	240/200
2	Max.feeding size (LxW) (mm)	2600×1400	2400×1200
3	Skip feeding size (Lx W) (mm)	2600×1600	2400×1200
4	Min.paper size (mm)	600×350	600×320
5	Max. Printing Area (L x W) (mm)	2600×1400	2400×1200
6	Printing plate thickness (mm)	7.2	7.2
7	Cardboard thickness (mm)	2.5-10	2.5-10
8	Max.die-cutting size (mm)	2600×1300	2400×1100

Our equipment is suitable for various types of corrugated boxes, all equipment can be customized according to customer needs. We have a professional team to recommend suitable and cost-effective equipment to meet your production needs and save your budget. One model for many needs.

Company profile

LONGCHENG CARTON MACHINETRY is located in Dongguang County, Hebei Province, we are an intelligent supplier with professional of carton packing research development and production, we are a modern enterprise with integrating design,R&D, production, sales and after-sales, Our production have a reputation for timely delivery ,good service to win the user’s highpraise.ln the future, we will take the market-oriented, science and technology development as main power, sincerely cooperate with the users, constantly updated products, continuously improve the quality of product, perfect after-sales service,sincerelyreturn society.Our company’s products are designed and manufactured accordingto European standards. The equipment is exported to more than 60 countries, and more than 20 provinces in China.Many places havesales office and after-sales outlets to provide customers with guarantee services.

Professional team

Our Commitment to Providing Our Customers with Best Services.

★ Our sales team has professional product knowledge and rich application experience. They are optimistic and enthusiastic and provide you with the most thoughtful service.
★ Whenever you have questions about our products after receiving the goods, our after-sales services team will answer your questions patiently and solve your problem promptly.

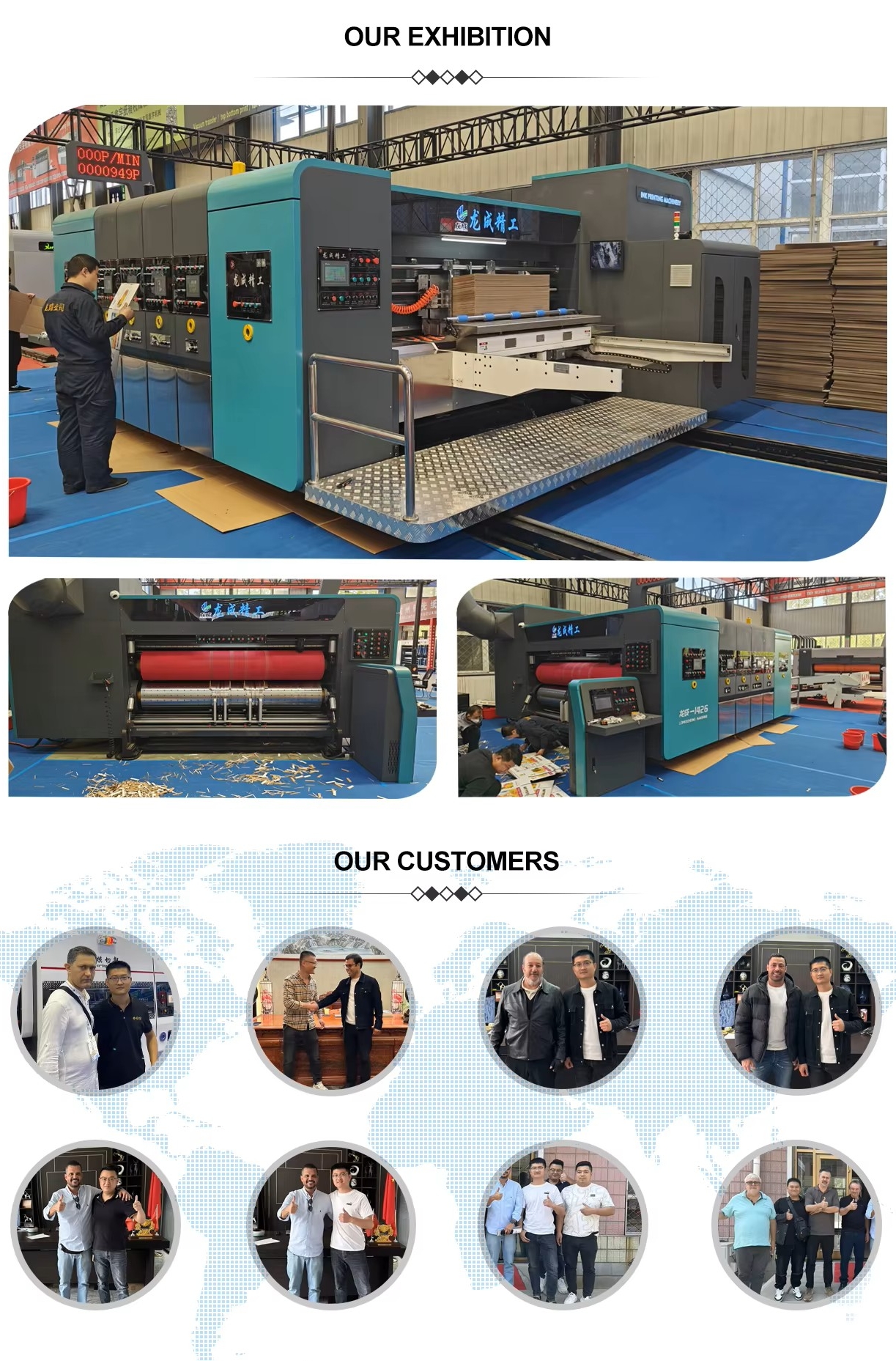

Company exhibition

Longcheng Machinery focuses on developing the most cost-effective carton packaging machines, in order to meet customers increasing demands. We provides packaging solutions throughout the world. More than 150 machines have been installed in 50+ countries all over the world, like Japan, America, UK, India, and so on. Both machine performance and customer service have received tons of excellent reviews from our partners and customers.

FAQs

Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.

Q: Do you have quality certificate?
A: Yes we have CE, etc.

Q: What’s the delivery time?
A: Around 20~30days, however, based on order.

Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.

Q: What’s payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.

Q: Does it easy to operate and what can i do if it doesn’t work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
